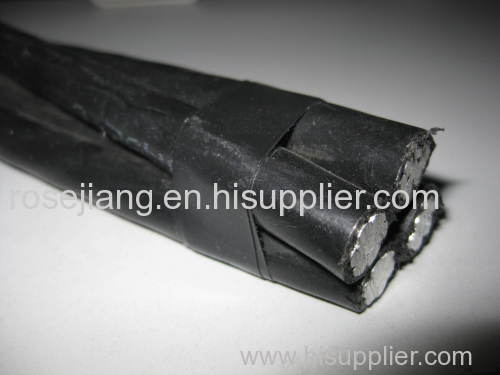

Aluminum Electrical France /Russia/South africa/Brazil stantard ABC Overhead cable factory price :
Applications of abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP)insulated conductors.
Specification of abc cable
CONSTRUCTION
(1) Conductor :
a) Phase conductor
The phase conductors shall be of Aluminum 1350 conductor and compacted circular stranded.
b) Neutral or messenger conductor
The neutral or messenger conductor shall be of aluminum alloy conductor AAAC or ACSR Or AAC and compacted circular stranded.
c) Street-Lighting conductor
The street lighting conductors shall be ofaluminum conductor and compacted circular stranded.
(2) Insulation :
The phase,neutral and street lighting conductors shall be extruded with Polyethylene (PE) or Cross-linked Polyethylene (XLPE) as insulation.
(3) Assembly
The cable consists of insulated phase and street lighting aluminum conductors, shall be held firmly onto the
insulated neutral messenger aluminum alloy conductor in a right hand (Z) lay.
